Product Summary

The TDA7396 is a BRIDGE class AB audio power amplifier especially intended for car radio High Power applications. The 2W power capability together with the possibility to operate either in differential input mode or single ended input mode makes it suitable for boosters and high end car radio applications. The exclusive fully complementary output stage and the internally fixed gain configuration drop the external component count.

Parametrics

Absolute maximum ratings: (1)VS, DC Supply Voltage: 28 V; (2)VOP, Operating Supply Voltage: 18 V; (3)VPEAK, Peak Supply Voltage (t = 50ms): 50 V; (4)IO:Output Peak Current repetitive (f > 10Hz):6A; Output Peak Current non repetitive: 7A; (5)Ptot, Power Dissipation (TCASE= 85°C): 43 W; (6)Tstg, Tj, Storage and Junction-Case: -40 to 150 °C.

Features

Features: (1)high power capability: 65w/2w max; 60w/2w eiaj; 45w/2w @vs = 14.4v, f = 1khz, d = 10%; (2)differential inputs (either single ended or differential input signals are accepted); (3)minimumexternal componentcount: no bootstrapcapacitors; no boucherot cells; internally fixed gain (26db); no svr capacitor; (4)st.-by function (cmos compatible); (5)automatic mute during turn-on/off; (6)automute at minimum supply voltage detection; (7)synchronizing pin for simultaneous; (8)turn-on in multi-device applications; (9)no audible pop during mute and stby operations.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

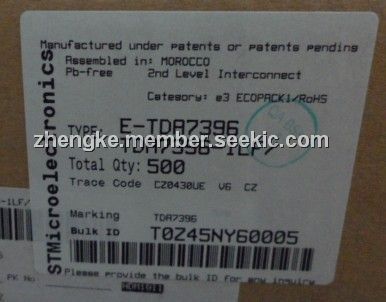

TDA7396
TDA7396
STMicroelectronics
Audio Amplifiers 45W Bridge Amplifier
Data Sheet
Negotiable
