Product Summary

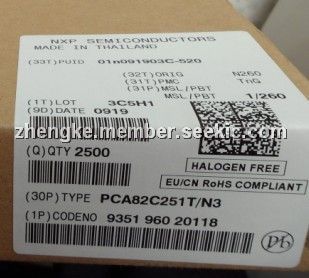

The PCA82C251T/N3.118 is one member of the PCA82C251T/N3.118 family which is designed as the CAN transceiver that is primarily intended for applications (up to 1 M baud) in trucks and buses. Also this device provides differential transmit capability to the bus and differential receive capability to the CAN controller.
Parametrics
Absolute maximum ratings:(1)supply voltage: -0.3 to +7.0 V;(2)DC voltage at pins 1, 4, 5 and 8: -0.3 to VCC + 0.3 V;(3)DC voltage at pin 7 (CANH): -36 to +36 V;(4)transient voltage on pins 6 and 7: -200 to +200 V;(5)storage temperature: -55 to +150 ℃;(6)ambient temperature: -40 to +125 ℃;(7)virtual junction temperature: -40 to +150 ℃;(8)electrostatic discharge voltage: -2500 to +2500 V.
Features
Features:(1)Fully compatible with the "ISO 11898-24 V" standard; (2)Slope control to reduce RFI; (3)Thermally protected; (4)Short-circuit proof to battery and ground in 24 V powered systems; (5)Low-current standby mode; (6)An unpowered node does not disturb the bus lines; (7)At least 110 nodes can be connected; (8)High speed (up to 1 Mbaud); (9)High immunity against electromagnetic interference.
Diagrams
 |
