Product Summary

The LM317T is a monolithic integrated circuit in TO-220, ISOWATT220, TO-3 and D2PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5A of load current with an output voltage adjustable over a 1.2 to 37V range. The nominal output voltage of LM317T is selected by means of only a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.

Parametrics

LM317T absolute maximum ratings: (1)Vi-o, Input-output Differential Voltage: 40 V; (2)IO, Output Current: Intenrally Limited; (3)Top, Operating Junction Temperature for LM117: 0 to 125oC; (4)Ptot, Power Dissipation: Internally Limited; (5)Tstg, Storage Temperature: -65 to 150oC; (6)output voltage range: 1.2 to 37v; (7)output current in excess of 1.5a.

Features

LM317T features: (1)output voltagerange: 1.2 to 37v; (2)output current in excess of 1.5a; (3)0.1% line and load regulation; (4)floatingoperation for high voltages; (5)complete seriesof protections :current limiting, thermal; shutdown andsoa control.

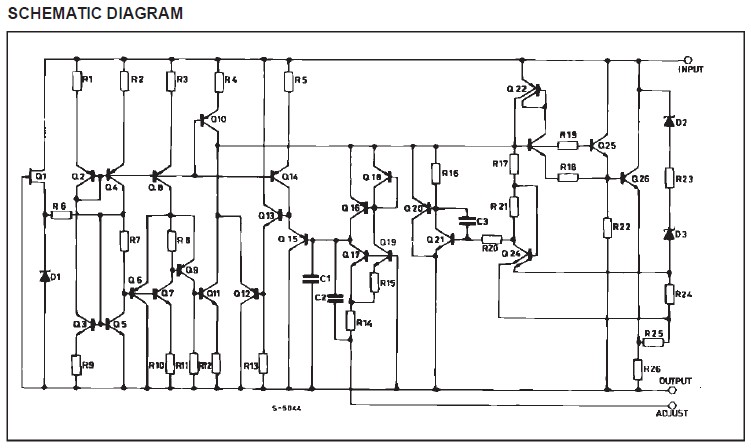

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM317T
LM317T
STMicroelectronics
Linear Regulators - Standard 1.2-37V Adj Positive 1.5 Amp Output
Data Sheet
0-1: $0.38
1-10: $0.28
10-100: $0.24
100-250: $0.21
LM317T (KA317)
LM317T (KA317)
Other

Data Sheet
Negotiable
LM317T/LB01
LM317T/LB01
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-900: $0.61
900-1350: $0.44
1350-2700: $0.41
2700-5400: $0.39
LM317T/LF01
LM317T/LF01
National Semiconductor (TI)
Linear Regulators - Standard
Data Sheet
0-900: $0.61
900-1350: $0.44
1350-2700: $0.41
2700-5400: $0.39
LM317T/NOPB
LM317T/NOPB
National Semiconductor (TI)
Linear Regulators - Standard 3-TERMINAL ADJ REG
Data Sheet
0-1: $1.02
1-25: $0.82
25-100: $0.71
100-250: $0.62
LM317T_Q
LM317T_Q
Fairchild Semiconductor
Linear Regulators - Standard 1.5A Adj Voltage Regulator
Data Sheet
Negotiable
LM317T-DG
LM317T-DG
STMicroelectronics
Linear Regulators - Standard Dual Guage ADJ 1.2V to 37V 1.5A
Data Sheet
0-1: $0.35
1-10: $0.31
10-100: $0.24
100-250: $0.21
LM317TG
LM317TG
ON Semiconductor
Linear Regulators - Standard 1.5A ADJ 1.2-37V Positive
Data Sheet
0-1: $0.31
1-25: $0.26
25-100: $0.18
100-500: $0.15
