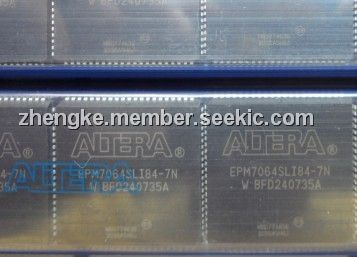

EPM7064SLI84-7N

complex-EEPLD, 64-cell, 12nS prop delay, LDCC, 68PIN, plastic

Rated 5 Rating 5 | reviews | Write a review

Price:: US $7.00~10.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $7.00~10.00

PartNumber:: EPM7064SLI84-7N

Brand:: Altera Corporation - ALTR | Pack: PLCC | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Mr. Nemo's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-03-25

From Other Seller

Part Number:EPM7064SLI84-7N
US $7.00 - 10.00
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
HEF4093BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

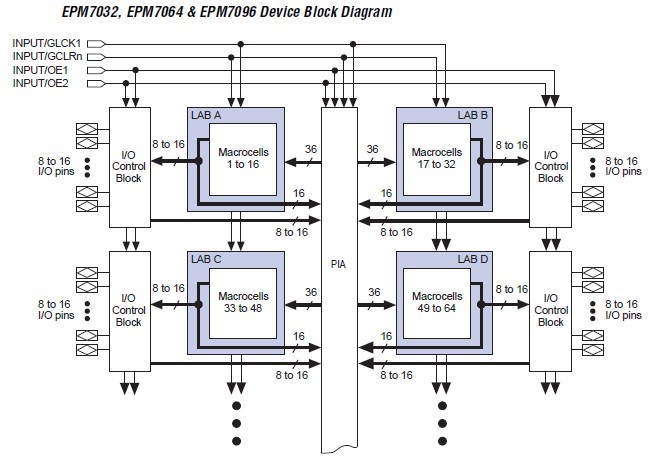

The EPM7064SLI84-7N high-density, high-performance PLDs is based on Altera second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROM-based MAX 7000 family provides 600 to 5,000 usable gates, ISP, pin-to-pin delays as fast as 5 ns, and counter speeds of up to 175.4 MHz. MAX 7000S devices in the -5, -6, -7, and -10 speed grades as well as MAX 7000 and MAX 7000E devices in -5, -6, -7, -10P, and -12P speed grades comply with the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2. See Table 3 for available speed grades.

Parametrics

Absolute maximum ratings:(1)Supply voltage With respect to ground, VCC: –2.0 to 7.0V; (2)DC input voltage, VI; –2.0 to 7.0V; (3)DC output current, per pin, IOUT: –25 to 25mA; (4)Storage temperature No bias, TSTG: –65 to 150℃; (5)Ambient temperature Under bias, TAMB: –65 to 135℃; (6)Junction temperature, Ceramic packages, under bias, TJ: 150℃; (7)Junction temperature, PQFP and RQFP packages, under bias, TJ: 135℃.

Features

Features: (1)High-performance, EEPROM-based programmable logic devices (PLDs) based on second-generation MAX architecture; (2)5.0-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface available in MAX 7000S devices; (3)ISP circuitry compatible with IEEE Std. 1532; (4)Includes 5.0-V MAX 7000 devices and 5.0-V ISP-based MAX 7000S devices; (5)Built-in JTAG boundary-scan test (BST) circuitry in MAX 7000S devices with 128 or more macrocells; (6)Complete EPLD family with logic densities ranging from 600 to 5,000 usable gates (see Tables 1 and 2); (7)5-ns pin-to-pin logic delays with up to 175.4-MHz counter frequencies (including interconnect); (8)PCI-compliant devices available.
