Product Summary

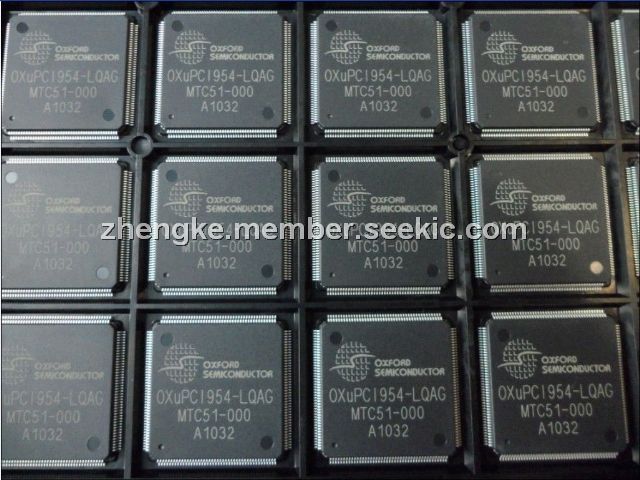

The OXUPCI954-LQAG is an integrated high perfomance quad UART.
Parametrics
OXUPCI954-LQAG absolute maximum ratings: (1)VCC, core power supply: -0.3 to 3.9V; (2)VCC5, power supply of 5V I/O: -0.3 to 6V; (3)VIN3, intput voltage of 3.3V I/O: -0.3 to VCC+0.3V; (4)Vout, output voltage of 3.3V I/O: -0.3 to VCC+0.3V; (5)TSTG, storage temperature: -40 to 150℃.
Features
OXUPCI954-LQAG features: (1)Programmable RS485 turnaround delay; (2)Arbitrary trigger levels for receiver and transmitter FIFO interrupts and automatic in-band and out-of-band flow control; (3)Detection of bad data in the receiver FIFO; (4)8-bit pass-through local bus; (5)Local registers to provide status/control of device functions.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 OXUPCI954-LQAG |
PLX Technology |
Peripheral Drivers & Components (PCIs) PCI bridge-quad serial & paralll prt |
Data Sheet |
|
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
OXuPCI952 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
OXUPCI952-LQAG |
PLX Technology |
Peripheral Drivers & Components (PCIs) PCI bridge-quad serial & paralll prt |
Data Sheet |
|
|
||||||||||||
|
OXuPCI954 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
OXUPCI954-LQAG |
PLX Technology |
Peripheral Drivers & Components (PCIs) PCI bridge-quad serial & paralll prt |
Data Sheet |
|
|
||||||||||||
